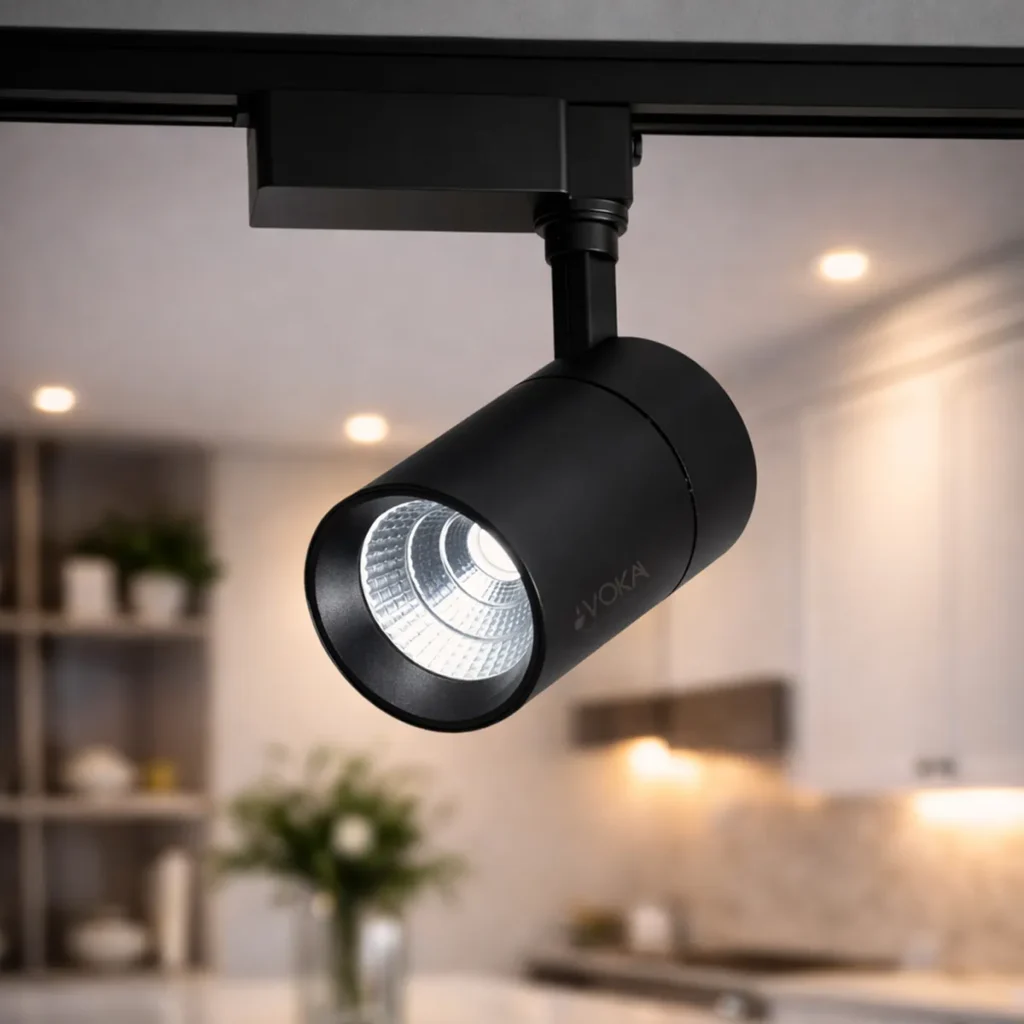

Spot lights are a type of focused lighting designed to highlight specific areas or objects rather than lighting up an entire space. They produce a narrow, concentrated beam of light, making them perfect for accent lighting in homes, shops, showrooms, and galleries. Whether you want to highlight a product, artwork, or architectural detail, spot lights help create a clean and professional look while adding depth and style to the space. They are available in different designs such as recessed, surface-mounted, and track lights, and often come with adjustable heads so you can direct the light exactly where you need it.
Modern LED spot lights are energy-efficient, long-lasting, and provide high brightness with minimal power consumption. They are commonly used in retail environments, offices, and residential interiors to create both functional and decorative lighting effects. With options in different color temperatures and beam angles, spot lights offer flexibility to achieve the perfect ambiance and visual focus in any setting.

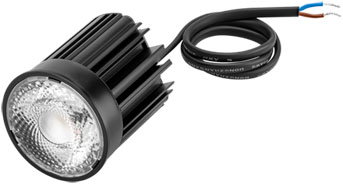

Tridonic SLA AC 50mm SNC3 Spotlight modules
Article number: 28005119
PRODUCT DESCRIPTION
Product description
- Fits in most existing MR16 / GU10 halogen luminaires
- 10 W LED Equivalent to 50 W MR16 halogen with higher lumen output
- Perfect solution for MR16 / GU10 replacement project
- Compatible with leading and trailing edge phase cut dimmers
- Dimming range 0.1 to 100 % (depends on dimmer)
- Eye-catching lens optic with mirrors halogen facettes
- Long lifetime: L70B50 >54,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Optical properties
- Colour temperatures 2,700, 3,000 and 4,000 K
- Typ. luminous flux 865 lm at ta = 25 °C
- Efficacy 92 lm/W at ta = 25 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3)
- Beam Angle: spot degree (12° / 24°) or downlight (36°)

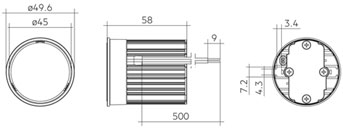

Mechanical properties
- Luminaire dimension ø49.6 x 58 mm
- Mounting with mounting ring, see accessories
Tridonic SLA AC 50mm SNC3 Spotlight modules
Article number: 28005122
PRODUCT DESCRIPTION
Product description
- Fits in most existing MR16 / GU10 halogen luminaires
- 10 W LED Equivalent to 50 W MR16 halogen with higher lumen output
- Perfect solution for MR16 / GU10 replacement project
- Compatible with leading and trailing edge phase cut dimmers
- Dimming range 0.1 to 100 % (depends on dimmer)
- Eye-catching lens optic with mirrors halogen facettes
- Long lifetime: L70B50 >54,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Optical properties
- Colour temperatures 2,700, 3,000 and 4,000 K
- Typ. luminous flux 865 lm at ta = 25 °C
- Efficacy 92 lm/W at ta = 25 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3)
- Beam Angle: spot degree (12° / 24°) or downlight (36°)
Mechanical properties
- Luminaire dimension ø49.6 x 58 mm
- Mounting with mounting ring, see accessories
Tridonic SLA AC 50mm SNC3 Spotlight modules
Article number: 28005125
PRODUCT DESCRIPTION
Product description
- Fits in most existing MR16 / GU10 halogen luminaires
- Replacement of 50 W MR16 halogen lamps or 20 W HID lamp
- Free choice of variable dimming and non-dimming LED drivers
- Pre-wired for quick and easy installation
- Eye-catching lens optic with mirrors halogen facettes
- Long lifetime: L70B50 >54,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Optical properties
- Colour temperatures 2,700, 3,000 and 4,000 K
- Typ. luminous flux 1,535 lm/W at 4,000 K, Irated and ta = 25 °C
- Efficacy 130 lm/W at Irated and ta = 25 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3)
- Beam Angle: spot degree (12° / 24°) or downlight (36°)
Mechanical properties
- Luminaire dimension ø49.6 x 50 mm
- Mounting with mounting ring, see accessories
SLA DC 50mm 1500lm 927 36D SNC3 Spotlight modules
Article number: 28005128
PRODUCT DESCRIPTION
Product description
- Fits in most existing MR16 / GU10 halogen luminaires
- Replacement of 50 W MR16 halogen lamps or 20 W HID lamp
- Free choice of variable dimming and non-dimming LED drivers
- Pre-wired for quick and easy installation
- Eye-catching lens optic with mirrors halogen facettes
- Long lifetime: L70B50 >54,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Optical properties
- Colour temperatures 2,700, 3,000 and 4,000 K
- Typ. luminous flux 1,535 lm/W at 4,000 K, Irated and ta = 25 °C
- Efficacy 130 lm/W at Irated and ta = 25 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3)
- Beam Angle: spot degree (12° / 24°) or downlight (36°)

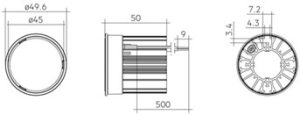

Mechanical properties
- Luminaire dimension ø49.6 x 50 mm
- Mounting with mounting ring, see accessories
EAN/UPC: 9006210859675
Country of Origin: CN
Customs tariff No.: 9405119
| Colour tolerance | 3 SDCM |
| Protection class | III |
| Type of protection | IP20 |
| Guarantee | 5 years |
(1) Integral measurement over the complete module.
Photometric data
Type | Article number | Colour temperature | Typ. luminous flux at ta = 25 °C | Efficacy of the luminaire at ta = 25 °C | Typ. intensity at tp rated | Beam characteristic | Colour rendering index CRI |
|---|---|---|---|---|---|---|---|
Operating mode HE1 | |||||||
| 28005128 | 2700.0 K | 1060 lm | 123 lm/W | 2565.0 cd | 36 ° | > 90 | |
Operating mode NM1 | |||||||
| 28005128 | 2700.0 K | 1370 lm | 114 lm/W | 3315.0 cd | 36 ° | > 90 |
(1) Tolerance of typ. luminous flux ± 7.5 %. Measurement uncertainty ± 10 %.
Electric data
Type | Article number | Forward Current | Typ. forward voltage at ta = 25 °C | Min. forward voltage at ta = 25 °C | Max. forward voltage at tp = 25 °C | Max. forward voltage at ta = 25 °C | Typ. power consumption at ta = 25 °C |
|---|---|---|---|---|---|---|---|
Operating mode HE1 | |||||||
| 28005128 | 250.0 mA | 34 V | 31.3 V | 39.7 V | 39.7 V | 8.5 W | |
Operating mode NM1 | |||||||
| 28005128 | 350.0 mA | 34.3 V | 32.5 V | 39.7 V | 39.7 V | 12.0 W |
Technical data
Type | Article number | l rated | l max | Max. perm. peak current / max. pulse width | Max. permissible LF current ripple | Max. working voltage for insulation SELV | Electrical strength, insulation test voltage | Ambient temperature ta | Type of protection | Lumen maintenance L70B50 |
|---|---|---|---|---|---|---|---|---|---|---|
Operating mode HE1 | ||||||||||
| 28005128 | 350.0 mA | 385.0 mA | 1350 mA / 10 ms | 1000.0 mA | < 60 V | 0.5 kV | -20 – 40 °C | IP20 | 54000 h | |
Operating mode NM1 | ||||||||||
| 28005128 | 350.0 mA | 385.0 mA | 1350 mA / 10 ms | 1000.0 mA | < 60 V | 0.5 kV | -20 – 40 ° |

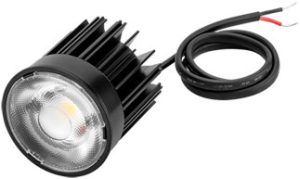

Tridonic SLA DC 50mm SNC3
Spotlight modules
Article number: 28005131
PRODUCT DESCRIPTION
Product description
- Fits in most existing MR16 / GU10 halogen luminaires
- Replacement of 50 W MR16 halogen lamps or 20 W HID lamp
- Free choice of variable dimming and non-dimming LED drivers
- Pre-wired for quick and easy installation
- Eye-catching lens optic with mirrors halogen facettes
- Long lifetime: L70B50 >54,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Optical properties
- Colour temperatures 2,700, 3,000 and 4,000 K
- Typ. luminous flux 1,535 lm/W at 4,000 K, Irated and ta = 25 °C
- Efficacy 130 lm/W at Irated and ta = 25 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3)
- Beam Angle: spot degree (12° / 24°) or downlight (36°)
Mechanical properties
- Luminaire dimension ø49.6 x 50 mm
- Mounting with mounting ring, see accessories
| Colour tolerance | 3 SDCM |
| Protection class | III |
| Type of protection | IP20 |
| Guarantee | 5 years |
(1) Integral measurement over the complete module.
Photometric data
Type | Article number | Colour temperature | Typ. luminous flux at ta = 25 °C | Efficacy of the luminaire at ta = 25 °C | Typ. intensity at tp rated | Beam characteristic | Colour rendering index CRI |
|---|---|---|---|---|---|---|---|
Operating mode HE9 | |||||||
Operating mode NM9 |
(1) Tolerance of typ. luminous flux ± 7.5 %. Measurement uncertainty ± 10 %.
Electric data
Type | Article number | Forward Current | Typ. forward voltage at ta = 25 °C | Min. forward voltage at ta = 25 °C | Max. forward voltage at tp = 25 °C | Max. forward voltage at ta = 25 °C | Typ. power consumption at ta = 25 °C |
|---|---|---|---|---|---|---|---|
Operating mode HE9 | |||||||
Operating mode NM9 |
Technical data
Type | Article number | l rated | l max | Max. perm. peak current / max. pulse width | Max. permissible LF current ripple | Max. working voltage for insulation SELV | Electrical strength, insulation test voltage | Ambient temperature ta | Type of protection | Lumen maintenance L70B50 |
|---|---|---|---|---|---|---|---|---|---|---|
Operating mode HE9 | ||||||||||
Operating mode NM9 |
Tridonic SLA DC 50mm 1500lm 940 36D SNC3 Spotlight modules
Article number: 28005134
PRODUCT DESCRIPTION
Product description
- Fits in most existing MR16 / GU10 halogen luminaires
- Replacement of 50 W MR16 halogen lamps or 20 W HID lamp
- Free choice of variable dimming and non-dimming LED drivers
- Pre-wired for quick and easy installation
- Eye-catching lens optic with mirrors halogen facettes
- Long lifetime: L70B50 >54,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Optical properties
- Colour temperatures 2,700, 3,000 and 4,000 K
- Typ. luminous flux 1,535 lm/W at 4,000 K, Irated and ta = 25 °C
- Efficacy 130 lm/W at Irated and ta = 25 °C
- High colour rendering index CRI > 90
- Small colour tolerance (MacAdam 3)
- Beam Angle: spot degree (12° / 24°) or downlight (36°)
Mechanical properties
- Luminaire dimension ø49.6 x 50 mm
- Mounting with mounting ring, see accessories
| Colour tolerance | 3 SDCM |
| Protection class | III |
| Type of protection | IP20 |
| Guarantee | 5 years |
(1) Integral measurement over the complete module.
Photometric data
Type | Article number | Colour temperature | Typ. luminous flux at ta = 25 °C | Efficacy of the luminaire at ta = 25 °C | Typ. intensity at tp rated | Beam characteristic | Colour rendering index CRI |
|---|---|---|---|---|---|---|---|
Operating mode HE1 | |||||||
| 28005134 | 4000.0 K | 1130 lm | 130 lm/W | 2735.0 cd | 36 ° | > 90 | |
Operating mode NM1 | |||||||
| 28005134 | 4000.0 K | 1535 lm | 125 lm/W | 3710.0 cd | 36 ° | > 90 |
(1) Tolerance of typ. luminous flux ± 7.5 %. Measurement uncertainty ± 10 %.
Electric data
Type | Article number | Forward Current | Typ. forward voltage at ta = 25 °C | Min. forward voltage at ta = 25 °C | Max. forward voltage at tp = 25 °C | Max. forward voltage at ta = 25 °C | Typ. power consumption at ta = 25 °C |
|---|---|---|---|---|---|---|---|
Operating mode HE1 | |||||||
| 28005134 | 250.0 mA | 34 V | 31.3 V | 39.7 V | 39.7 V | 8.5 W | |
Operating mode NM1 | |||||||
| 28005134 | 350.0 mA | 34.3 V | 32.5 V | 39.7 V | 39.7 V | 12.0 W |
Technical data
Type | Article number | l rated | l max | Max. perm. peak current / max. pulse width | Max. permissible LF current ripple | Max. working voltage for insulation SELV | Electrical strength, insulation test voltage | Ambient temperature ta | Type of protection | Lumen maintenance L70B50 |
|---|---|---|---|---|---|---|---|---|---|---|
Operating mode HE1 | ||||||||||
| 28005134 | 350.0 mA | 385.0 mA | 1350 mA / 10 ms | 1000.0 mA | < 60 V | 0.5 kV | -20 – 40 °C | IP20 | 54000 h | |
Operating mode NM1 | ||||||||||
| 28005134 | 350.0 mA | 385.0 mA | 1350 mA / 10 ms | 1000.0 mA | < 60 V | 0.5 kV | -20 – 40 °C | IP20 | 54000 h |
