ECXe 400.667 220-240V
Article Number: 187420
EasyLine DIP switch C Gen.2
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187420 | ECXe 400.667 220-240V | 17 W | SELV | 97 mm | 43 mm | 23 mm | 81g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187420 | ECXe 400.667 220-240V | 17 W | 20 V | 42 V | 5 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187420 | ECXe 400.667 220-240V | 17 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 85mA | 0.96 | 0.87 | 9 % | no standby operation possible | ≤ 0.3 W | 15 A | 246 µs | 20 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187420 | ECXe 400.667 220-240V | 17 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187420 | ECXe 400.667 220-240V | 17 W | No | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187420 | ECXe 400.667 220-240V | 17 W | SELV | 60 V | 1 kV | 2 kV | 0.6 mA |
ECXe 1050.671 220-240V
Article Number: 187424
EasyLine DIP switch C Gen.2
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | SELV | 97 mm | 43 mm | 23 mm | 85g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | 20 V | 42 V | 5 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 170 mA | 0.97 | 0.9 | 8% | no standby operation possible | ≤ 0.4 W | 20 A | 266 µs | 28 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | No | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | SELV | 60 V | 1 kV | 2 kV | 0.45 mA |
ECXe 800.669 220-240V
Article Number: 187422
ComfortLine DIP Switch C DALI2-Basic
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | SELV | 97 mm | 43 mm | 23 mm | 85g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | 20 V | 42 V | 5 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 170 mA | 0.97 | 0.9 | 8% | no standby operation possible | ≤ 0.4 W | 20 A | 266 µs | 28 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | No | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 34 W | SELV | 60 V | 1 kV | 2 kV | 0.45 mA |
ECXe 800.669 220-240V
Article Number: 187423
ComfortLine DIP Switch C DALI2-Basic
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187423 | ECXe 800.670 220-240V | 34 W | SELV | 97 mm | 43 mm | 23 mm | 130 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187423 | ECXe 800.670 220-240V | 40 W | 30 V | 50V | 5 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187423 | ECXe 800.670 220-240V | 40 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 200 mA | 0.97 | 0.9 | 8% | no standby operation possible | ≤ 0.4 W | 23 A | 260 µs | 20 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187423 | ECXe 800.670 220-240V | 40 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187423 | ECXe 800.670 220-240V | 40W | No | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187423 | ECXe 800.670 220-240V | 40 W | SELV | 60 V | 1 kV | 2 kV | 0.3mA |
ECXd400.675
Article Number: 187440
ComfortLine DIP Switch C DALI2-Basic
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
-
Product benefits
- Dimmable: DALI (Ed. 2)
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187422 | ECXd400.675 | 17 W | SELV | 97 mm | 43 mm | 23 mm | 69g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXd400.675 | 17 W |
20 V
|
42 V
|
3 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXe 800.669 220-240V | 17 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 90 mA | 0.97 | 0.865 | 8% | o.47w | ≤ 0.4 W | 15 A | 234 µs | 680 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187422 | ECXd400.675 | 17 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level | |
|---|---|---|---|---|---|---|
| 187422 |
| 17 W | yes | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187422 | ECXd400.675 | 17 W | SELV | 60 V | 1 kV | 0.5 mA |
ECXd800.693
Article Number: 187000
EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 60.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187422 | EDXe130/24.090 | 30 W | SELV | 153mm | 41 mm | 32 mm | 121g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | 24V | 5% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 150mA | 0.95 | 0.88 | 6% | no standby operation possible | ≤ 0.2W | 16A | 264µs | 250ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187000 | EDXe130/24.090 | 30W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | No | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Leakage current over PE |
|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | SELV | 1kV | 0.54mA |
ECXd1050.678
Article Number: 187443
ComfortLine DIP Switch C DALI2-Basic
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
KNOW MORE
-
Product benefits
- Dimmable: DALI (Ed. 2)
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| 187422 |
|
44 W | SELV | 97 mm | 43 mm | 23 mm | 140g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 187422 |
|
44 W |
20 V
|
42 V
|
3 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXd1050.678 | 44 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 90 mA | 0.97 | 0.89 | 11% | o.45w | ≤ 0.4 W | 15 A | 240 µs | 680 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187422 | ECXd1050.678 | 44 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187422 | ECXd1050.678 | 44W | yes | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187422 | ECXd800.693 | 44 W | SELV | 60 V | 1 kV | 0.5 mA |
ECXd800.693
Article Number: 187475
ComfortLine DIP Switch C DALI2-Basic
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
-
Product benefits
- Dimmable: DALI (Ed. 2)
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187422 | ECXd800.693 | 40 W | SELV | 97 mm | 43 mm | 23 mm | 140g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXd800.693 | 40 W |
30 V
|
50 V
|
3 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187422 | ECXd800.693 | 40 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 205mA | 0.97 | 0.895 | 11% | o.45w | ≤ 0.4 W | 24A | 240 µs | 680 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187422 | ECXd800.693 | 40 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level | |
|---|---|---|---|---|---|---|
| 187422 |
|
40 w | yes | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187422 | ECXd800.693 | 40 W | SELV | 60 V | 1 kV | 0.5 mA |
EDXe160/24.091
Article Number: 187347

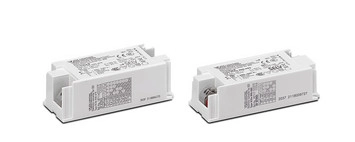

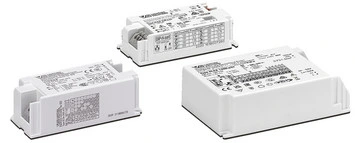

ComfortLine DIP Switch C-wideUout DALI2
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with integrated cord grip for independent operation.
KNOW MORE
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with integrated cord grip for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Very low ripple: < 3%
- Long service life: up to 100.000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 15 W | SELV | 85mm | 40 mm | 21.5 mm | 60g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 44 W | 9 V | 52 V | 3% | < 0.4 |
| -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 44W | 220V | 240V | 176V | 264V | 50Hz | 60Hz | 218 MA | 0.95 | 0.895 | 7% | no standby operation possible | ≤ 0.35W | 7A | 55µs | 602 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187347 | ECXd1050.636 | 44W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd350.636 | 44W | Yes |
| No | No | 1 % | 100 % | 0 Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 44W | SELV | 57 V | 1 kV | 0.7 mA |
EDXe1180/24.094
Article Number: 187004

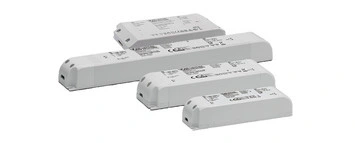

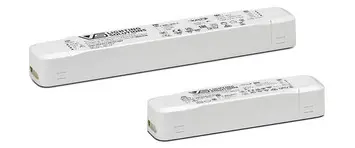

EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 60.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187004 | EDXe175/24.094 | 180W | SELV | 345mm | 50 mm | 35mm | 650g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187004 | EDXe130/24.094 | 180W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187004 | EDXe175/24.094 | 180W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 850MA | 0.95 | 0.94 | 6% | no standby operation possible | ≤ 0.45W | 28A | 137µs | 100 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187004 | EDXe175/24.094 | 180W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187004 | EDXe130/24.094 | 180W | No | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Leakage current over PE | |
|---|---|---|---|---|---|---|
| 187004 | EDXe175/24.094 | 180W | SELV | 1 kV | 0.4mA |
EDXe160/24.103
Article Number: 187362
EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Dimmable: DALI (Ed. 2)
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- With integrated cord grip for independent operation
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187362 | EDXd180/24.086 | 80W | SELV | 290 mm | 45 mm | 30.5mm | 310g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187362 | EDXd180/24.086/24.094 | 80W | 24V | 1% | < 0.4 | No | yes | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187362 | EDXd180/24.086 | 80W | 220V | 240V | 176V | 264V | 50Hz | 60Hz | 393MA | 0.95 | 0.88 | 7% | ≤ 0.35W | ≤ 0.4W | 37A | 264µs | 598 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Time to light on in DC operation |
|---|---|---|---|
| 187362 | EDXd145/24.086 | 80W | 648 ms |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187362 | EDXd145/24.086 | 80W | Yes | Yes | No | Yes | No | No | No | No | No | 1% | 100% | 4000Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N |
|---|---|---|---|---|
| 187362 | EDXd145/24.086 | 80W | SELV | 1kV |
EDXd145/24.099
Article Number: 187507

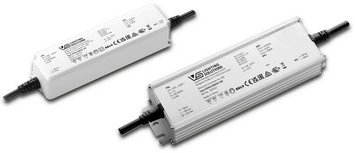

ComfortLine 24V C DALI2 IP67
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Dimmable: DALI (Ed. 2)
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187507 | EDXd145/24.099 | 45W | SELV | 167 mm | 50 mm | 31 mm | 452.1g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187507 | EDXd145/24.099 | 45W | 24V | 1% | < 0.4 | No | Yes | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187507 | EDXd145/24.099 | 45W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 230mA | 0.98 | 0.88 | 12% | ≤ 0.5W | ≤ 0.45W | ≤ 0.5W | 20A | 256µs | 426ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187507 | EDXd145/24.099 | 45W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187507 | EDXd145/24.099 | 45W | Yes | Yes | No | Yes | No | No | No | No | No | 1% | 100% | 20000Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187507 | EDXd145/24.099 | 45W | SELV | 4kV | 6kV | 0.26mA |
EDXd1150/24.101
Article Number: 187509
ComfortLine 24V C DALI2 IP67
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Dimmable: DALI (Ed. 2)
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187509 | EDXd1150/24.101 | 150W | SELV | 262 mm | 50 mm | 31 mm | 748.1g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187509 | EDXd1150/24.101 | 150W | 24V | 1% | < 0.4 | No | Yes | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187509 | EDXd1150/24.101 | 150W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 230mA | 0.99 | 0.9 | 5% | ≤ 0.5W | ≤ 0.45W | ≤ 0.5W | 48A | 406µs | 752ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187509 | EDXd1150/24.101 | 150w |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187509 | EDXd1150/24.101/24.099 | 150W | Yes | Yes | No | Yes | No | No | No | No | No | 1% | 100% | 20000Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187509 | EDXd1150/24.101 | 150W | SELV | 4kV | 6kV | 0.28mA |
EDXe1150/24.105
Article Number: 187556
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187556 | EDXe160/24.105 | 150W | SELV | 156 mm | 48mm | 33mm | 455g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187556 | EDXe160/24.105 | 150W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187556 | EDXe160/24.105 | 150W | 150V | 240V | 198V | 264V | 50Hz | 60Hz | 710mA | 0.95 | 0.92 | 10% | no standby operation possible | ≤ 0.4W | 66A | 220µs | 298ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187556 | EDXe160/24.105 | 150W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187556 | EDXe160/24.105 | 150W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187556 | EDXe160/24.105 | 150W | SELV | 1kV | 0mA |
ECXd 1050.582
Article Number: 187251

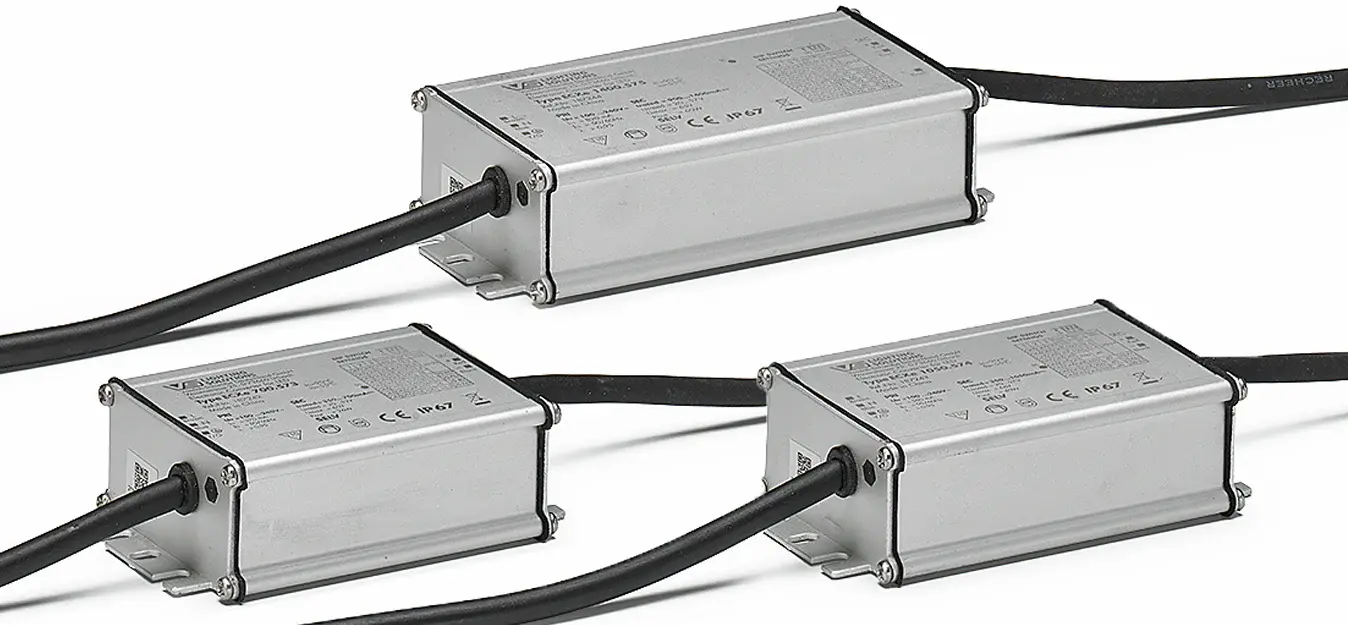

ComfortLine Prog S-1-10 V 100 V IP 40W
For installation in street or industrial luminaires
Robust LED driver with 1-10 V dimming interface and individual setting of the output current via iProgrammer Street 2.
KNOW MORE
For installation in street or industrial luminaires
Robust LED driver with 1-10 V dimming interface and individual setting of the output current via iProgrammer Street 2.
Product benefits
- Degree of protection: IP67
- Dimmable: 1–10 V
- MidNight function
- Preassembled connection leads
- Product guarantee: 5 years
- Long service life: up to 100.000 hrs.
- Wide input voltage range: 100 – 277 V
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187251 | ECXd 1050.582 | 40W | SELV | 117mm | 67mm | 37mm | 490g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|
| 187251 | ECXd 1050.582 | 40 W | 28 V | 57 V | 5 % | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187251 | ECXd 1050.582 | 40 W | 100 V | 277 V | 90 V | 305 V | 47 Hz | 63 Hz | 221 mA | 0.96 | 0.855 | 5 % | no standby operation possible | no load operation not intended | 30 A | 108 µs | 1000 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187251 | ECXd 1050.582 | 40 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|
| 187251 | ECXd 1050.582 | 40 W | Yes |
| No | No | 10 % | 100 % | 0 Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187251 | ECXd 1050.582 | 40 W | SELV | 80 V | 4 kV | 6 kV | 0.7 mA |
EMCc 180.009
Emergency Basic LiFePO4 3h
For installation in linear emergency luminaires
Designed for installation in LED luminaires for safety lighting for rescue routes and extremely hazardous workplaces.
KNOW MORE
For installation in linear emergency luminaires
Designed for installation in LED luminaires for safety lighting for rescue routes and extremely hazardous workplaces.
Product benefits
- For emergency lighting for 1 hrs. Or 3 hrs. operating time
- Suitable for emergency lighting acc. to VDE 0108 or EN50172
- Suitable for LiFEPO4 Batteries
- Status LED (green)
GENERAL DATA
| Ref. No. | Type | Family data sheet | Functional Test | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 186807 | EMCc 180.009 | No | SELV | 150mm | 30.2mm | 22.1mm | 109g |
AC OPERATION
| Ref. No. | Type | Min. voltage | Max. voltage | Min. mains frequency | Max. mains frequency |
|---|---|---|---|---|---|
| 186807 | EMCc 180.009 | 20V | 105V | 50Hz | 60Hz |
DC OPERATION
| Ref. No. | Type | Time to light on in DC operation |
|---|---|---|
| 186807 | EMCc 180.009 | 850ms |
DIMMING
| Ref. No. | Type | Dimmable | Dimming interface DALI |
|---|---|---|---|
| 186807 | EMCc 180.009 | No | No |
SAFETY FEATURES
| Ref. No. | Type | Isolation primary – secondary | Battery charging time | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE |
|---|---|---|---|---|---|---|
| 186807 | EMCc 180.009 | SELV | 24h | 120V | 1kV | 2kV |

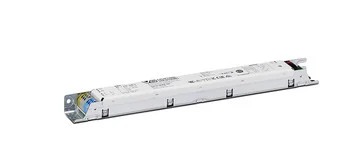

EDXe 1120/48.069
EasyLine 48 V C-L
LED driver for installation in luminaires for 48 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 48 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 50.000hrs.
- For conductor cross section: up to 2.5mm²
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 186692 | EDXe 175/48.069 | 120W | SELV | 300mm | 40mm | 30mm | 410g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 186692 | EDXe 175/48.069 | 120W | 48V | 3% | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 186692 | EDXe 175/48.069 | 120W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 580mA | 0.95 | 0.89 | 10% | no standby operation possible | ≤ 0.35W | 48A | 170µs |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 186692 | EDXe 175/48.069 | 120W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 186692 | EDXe 175/48.069 | 120W | No | No | No | No | No | No | No | No | No | No |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N |
|---|---|---|---|---|
| 186692 | EDXe 175/48.069 | 120W | SELV | 1kV |

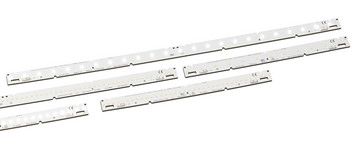

WU-M-703-TC-840
LED Line SMD W2 EasyLine Gen.2 Long Boards, 1120mm
Build-in LED module for installation in linear luminaires
The product family is perfectly suitable for integration into linear luminaires or long serial lines of lighting fixuters. High LED density within the board brings very high light efficacy and perfect light homogenity. As well, different lumen packages and extended modularity deliver additional flexibility in reaching the target applications setups in terms of length (1120mm, 1400mm, 1680mm, 1960mm etc.) and desired light outputs. Pre-assembled push-in terminals with top side, back side and B2B (fast Board to Board) connection option.
KNOW MORE
Build-in LED module for installation in linear luminaires
The product family is perfectly suitable for integration into linear luminaires or long serial lines of lighting fixuters. High LED density within the board brings very high light efficacy and perfect light homogenity. As well, different lumen packages and extended modularity deliver additional flexibility in reaching the target applications setups in terms of length (1120mm, 1400mm, 1680mm, 1960mm etc.) and desired light outputs. Pre-assembled push-in terminals with top side, back side and B2B (fast Board to Board) connection option.
Product benefits
- Available in different colour temperatures
- Available in different lengths
- Available in different lumen packages
- ENEC approved
- Efficiency: up to 187 lm/W
- Long service life: up to 90.000 hrs.
GENERAL DATA
| Ref. No. | Type | LED quantity | Family data sheet | Length | Width | Height | LED technology | LED colour | Correlated colour temperature | Beam angle | Find system solution! |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 572652 | WU-M-703-TC-840 | 140 pcs. | 1119 mm | 20 mm | 5.5 mm | SMD | neutral white | 4000 K | 120° |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | LED quantity | Operating current | Typ. voltage DC | Typ. power consumption |
|---|---|---|---|---|---|
| 572652 | WU-M-703-TC-840 | 140 pcs. |
|
|
|
OPTICAL OPERATING DATA
| ef. No. | Type | LED quantity | Current | Typ. luminous flux at If | Typ. efficiency at If | Typ. CRI (Ra) |
|---|---|---|---|---|---|---|
| 572652 | WU-M-703-TC-840 | 140 pcs. |
|
|
|
|
LIFETIME
| Ref. No. | Type | LED quantity | |||||
|---|---|---|---|---|---|---|---|
| 572652 | WU-M-703-TC-840 | 140 pcs. | |||||
EPREL DATA
| Ref. No. | Type | EPREL registration number | Energy efficiency class |
|---|---|---|---|
| 572645 | WU-M-702-B2B-840 | 1609673 | C |

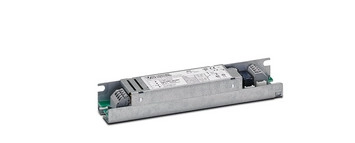

ECXe 500.479
EasyLine DIP Switch C-R1
For recessed or independent operation of compact luminaires (spots or downlights)
Compact casing design with integrated cord grip for independent operation.
KNOW MORE
For recessed or independent operation of compact luminaires (spots or downlights)
Compact casing design with integrated cord grip for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Very low ripple: < 1%
- Long service life: up to 100.000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187116 | ECXe 500.479 | 21 W | SELV | 97 mm | 43 mm | 30 mm | 82 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187116 | ECXe 500.479 | 21 W | 10 V | 42 V | 6 % | DIP switch | -7 % | 7 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187116 | ECXe 500.479 | 21 W | 220 V | 240 V | 176 V | 264 V | 50 Hz | 60 Hz | 122 mA | 0.95 | 0.89 | 5 % | no standby operation possible | no load operation not intended | 10 A | 200 µs | 500 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187116 | ECXe 500.479 | 21 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level |
|---|---|---|---|---|---|---|---|
| 187116 | ECXe 500.479 | 21 W | No | No | No | 100 % | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187116 | ECXe 500.479 | 21 W | SELV | 52 V | 1 kV | 0.7 mA |

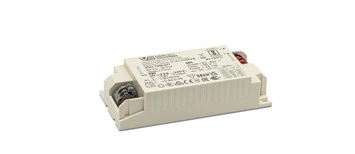

ECXe 600.668 220-240V
Article Number: 187421
ComfortLine DIP Switch C DALI2-Basic
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187421 | ECXe 600.668 220-240V | 25 W | SELV | 97 mm | 43 mm | 23 mm | 81g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187421 | ECXe 600.668 220-240V | 25 W | 20 V | 42 V | 5 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187421 | ECXe 600.668 220-240V | 25 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 130 mA | 0.95 | 0.885 | 9 % | no standby operation possible | ≤ 0.3 W | 15 A | 250 µs | 30 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187421 | ECXe 600.668 220-240V | 25 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187421 | ECXe 600.668 220-240V | 25 W | No | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187421 | ECXe 600.668 220-240V | 25 W | SELV | 60 V | 1 kV | 2 kV | 0.45 mA |
ECXe 1050.671 220-240V
Article Number: 187001
EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 60.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| 187001 |
| 60 W | SELV | 115mm | 45 mm | 25 mm | 300g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187001 |
| 60W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187001 | EDXe160/24.091/24.090 | 60W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 295 MA | 0.95 | 0.895 | 9% | no standby operation possible | ≤ 0.5W | 27A | 300µs | 200ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187001 | EDXe160/24.091 | 60W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187001 | EDXe160/24.091 | 250W | No | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Leakage current over PE |
|---|---|---|---|---|---|
| 187001 | EDXe160/24.091 | 30W | SELV | 1kV | 0.54mA |
EDXe160/24.091
Article Number: 187348
ComfortLine DIP Switch C-wideUout DALI2
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with integrated cord grip for independent operation.
KNOW MORE
For built-in or independent operation of compact luminaires (spots or downlights)
Compact casing design with integrated cord grip for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Very low ripple: < 3%
- Long service life: up to 100.000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 15 W | SELV | 85mm | 40 mm | 21.5 mm | 60g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 44 W | 9 V | 52 V | 3% | < 0.4 |
| -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 44W | 220V | 240V | 176V | 264V | 50Hz | 60Hz | 218 MA | 0.95 | 0.895 | 7% | no standby operation possible | ≤ 0.35W | 7A | 55µs | 602 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187347 | ECXd1050.636 | 44W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|
| 187347 | ECXd350.636 | 44W | Yes |
| No | No | 1 % | 100 % | 0 Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187347 | ECXd1050.636 | 44W | SELV | 57 V | 1 kV | 0.7 mA |
ECXd 1050.449
Article Number: 187085
ComfortLine Prog S-1-10 V 100 V IP
For installation in street or industrial luminaires
Robust LED drivers with 1-10 V dimming interface and individual setting of the output current via iProgrammer Street 2.
KNOW MORE
For installation in street or industrial luminaires
Robust LED drivers with 1-10 V dimming interface and individual setting of the output current via iProgrammer Street 2.
Product benefits
- Degree of protection: IP67
- Dimmable: 1–10 V
- MidNight function
- Preassembled connection leads
- Product guarantee: 5 years
- Long service life: up to 100.000 hrs.
- Wide input voltage range: 100–277 V
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187085 | ECXd 1050.449 | 200W | double orreinforced isolation | 193.6 mm | 68 mm | 39 mm | 940g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|
| 18708 | ECXd 1050.449 | 200 W | 130 V | 286 V | 5 % | < 0.0 | -2.5 % | 2.5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187085 | ECXd 1050.449 | 200 W | 100 V | 277 V | 90 V | 305 V | 47 Hz | 63 Hz | 230 mA | 0.97 | 0.935 | 4% | ≤ 2 W | no load operation not intended | 65 A | 336 µs | 500 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187085 | ECXd 1050.449 | 200 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|
| 187085 | ECXd 1050.449 | 200 W | No | No | No | 100 % | 100 % | 2000 Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187085 | ECXd 1050.449 | 200 W | double or reinforced isolation | 68 V | 6 kV | 10 kV | 0.7 mA |

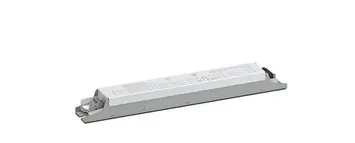

ECXd800.693
Article Number: 187550
EasyLine DIP switch L-LV
For installation in Linear light fixtures
Linear SELV LED drivers with integrated DIP switch interface for individual setting of the output current.
KNOW MORE
For installation in Linear light fixtures
Linear SELV LED drivers with integrated DIP switch interface for individual setting of the output current.
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Selectable output current via DIP switch
- Very low ripple: < 1%
- Long service life: up to 100.000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187550 | ECXe 1500.725 | 61 W | SELV | 280 mm | 30 mm | 21 mm | 186.8 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + | |
|---|---|---|---|---|---|---|---|---|---|---|
| 187550 | ECXe 1500.725 | 61 W | 15 V | 51 V | 1% | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187550 | ECXe 1500.725 | 61 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 297mA | 0.956 | 91.1 | 3.47% | o.3w | ≤ 0.3 W | 36.7A | 188 µs | 32 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. input voltage DC | Max. input voltage DC | Input current at max. V DC with max. load | Switching time AC – DC | Switching time DC – AC | Time to light on in DC operation |
|---|---|---|---|---|---|---|---|---|
| 187550 | ECXe 1500.725 | 61 W | 176 V | 280 V | 231 mA | 298 µs | 302 µs | 42 ms |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187550 | ECXe 1500.725 | 61 w | no | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187550 | ECXe 1500.725 | 61 W | SELV | 59 V | 2 kV | 2kv | 2.25 mA |
EDXe175/24.092
Article Number: 187002
EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 60.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187002 | EDXe175/24.092 | 75 W | SELV | 180mm | 52 mm | 30 mm | 300g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187002 | EDXe130/24.092 | 75W | 24V | 5% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187002 | EDXe175/24.092 | 75W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 370 MA | 0.95 | 0.9 | 8% | no standby operation possible | ≤ 0.45W | 29A | 250µs | 400 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187002 | EDXe175/24.092 | 75W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187002 | EDXe130/24.092 | 75W | No | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Leakage current over PE | |
|---|---|---|---|---|---|---|
| 187002 | EDXe175/24.092 | 75W | SELV | 1 kV | 0.735mA |
EDXe1120/24.093
Article Number: 187003
EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 60.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187003 | EDXe175/24.093 | 7120W | SELV | 300mm | 40 mm | 30 mm | 420g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187003 | EDXe130/24.093 | 120W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187003 | EDXe175/24.093 | 120W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 567 MA | 0.95 | 0.925 | 6% | no standby operation possible | ≤ 0.45W | 38A | 365µs | 250 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187003 | EDXe175/24.093 | 120W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187003 | EDXe130/24.093 | 120W | No | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Leakage current over PE | |
|---|---|---|---|---|---|---|
| 187003 | EDXe175/24.093 | 120W | SELV | 1 kV | 0.7mA |
EDXd1250/24.088
Article Number: 187430
ComfortLine 24 V L DALI2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Dimmable: DALI (Ed. 2)
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- With integrated cord grip for independent operation
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187430 | EDXd1250/24.088 | 250W | SELV | 431 mm | 45 mm | 30mm | 785.1g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187430 | EDXd1250/24.088 | 250W | 24V | 1% | < 0.4 | No | yes | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187430 | EDXd1250/24.088 | 250W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 1188MA | 0.95 | 0.93 | 3% | ≤ 0.45W | ≤ 0.5W | 47A | 640µs | 574 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Time to light on in DC operation |
|---|---|---|---|
| 187430 | EDXd1250/24.088 | 250W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187430 | EDXd1250/24.088 | 250W | Yes | Yes | No | Yes | No | No | No | No | No | 1% | 100% | 3000Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N |
|---|---|---|---|---|
| 187430 | EDXd1250/24.088 | 250W | SELV | 1kV |
EDXd1150/24.101
Article Number: 187508
ComfortLine 24V C DALI2 IP67
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Dimmable: DALI (Ed. 2)
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187508 | EDXd1150/24.101 | 150W | SELV | 262 mm | 50 mm | 31 mm | 748.1g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187508 | EDXd1150/24.101 | 150W | 24V | 1% | < 0.4 | No | Yes | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187508 | EDXd1150/24.101 | 150W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 230mA | 0.99 | 0.9 | 5% | ≤ 0.5W | ≤ 0.45W | ≤ 0.5W | 48A | 406µs | 752ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187508 | EDXd1150/24.101 | 150w |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187508 | EDXd1150/24.101/24.099 | 150W | Yes | Yes | No | Yes | No | No | No | No | No | 1% | 100% | 20000Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187508 | EDXd1150/24.101 | 150W | SELV | 4kV | 6kV | 0.28mA |
EDXe135/24.102
Article Number: 187509
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187553 | EDXe135/24.102 | 35W | SELV | 110 mm | 40 mm | 30mm | 250.1g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187553 | EDXe135/24.102 | 35W | 24V | 1% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187553 | EDXe135/24.102 | 35W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 170mA | 0.95 | 0.865 | 5% | no standby operation possible | ≤ 0.3W | 22A | 180µs | 160ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187553 | EDXe135/24.102 | 35W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187553 | EDXe135/24.102 | 35W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187553 | EDXe135/24.102 | 35W | SELV | 1kV | 0mA |
EDXe160/24.103
Article Number: 187554
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187554 | EDXe160/24.103 | 60W | SELV | 156 mm | 41 mm | 30mm | 355g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187554 | EDXe160/24.103 | 60W | 24V | 1% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187554 | EDXe160/24.103 | 60W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 300mA | 0.95 | 0.88 | 6% | no standby operation possible | ≤ 0.35W | 40A | 194µs | 386ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187554 | EDXe160/24.103 | 60W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187554 | EDXe160/24.103 | 60W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187554 | EDXe160/24.103 | 60W | SELV | 1kV | 0mA |
EDXe1150/24.106
Article Number: 187557
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187557 | EDXe160/24.106 | 200W | SELV | 220mm | 63mm | 38mm | 455g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187557 | EDXe160/24.106 | 200W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187557 | EDXe160/24.106 | 200W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 930mA | 0.98 | 0.93 | 8% | no standby operation possible | ≤ 0.4W | 60A | 365µs | 202ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187557 | EDXe160/24.106 | 200W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187556 | EDXe160/24.105 | 200W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187557 | EDXe160/24.106 | 200W | SELV | 4kV | 6kv | 1.22mA |
EDXe1320/24.108
Article Number: 187559
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187559 | EDXe160/24.108 | 320W | SELV | 261 mm | 63mm | 41mm | 1250g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187559 | EDXe160/24.108 | 320W | 24V | 1% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187559 | EDXe160/24.108 | 320W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 1490mA | 0.98 | 0.935 | 9% | no standby operation possible | ≤ 0.4W | 85A | 382µs | 264ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187559 | EDXe160/24.108 | 320W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187559 | EDXe160/24.108 | 320W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187559 | EDXe160/24.108 | 320W | SELV | 4kV | 6kv | 1.05 mA |
EDXe1100/24.104
Article Number: 187555
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187555 | EDXe160/24.104 | 100W | SELV | 156 mm | 48mm | 33mm | 445g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187555 | EDXe160/24.104 | 100W | 24V | 2% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187555 | EDXe160/24.104 | 100W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 480mA | 0.95 | 0.915 | 11% | no standby operation possible | ≤ 0.45W | 44A | 262µs | 374ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187555 | EDXe160/24.104 | 100W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187555 | EDXe160/24.104 | 100W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187555 | EDXe160/24.104 | 100W | SELV | 1kV | 0mA |
EDXe1240/24.107
Article Number: 187558
EasyLine 24 V IP Gen.2
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
KNOW MORE
LED driver for installation in 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Degree of protection: IP67
- Preassembled connection leads
- Product guarantee: 5 years
- SELV
- Long service life: up to 50.000hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Length | Width | Height | Weight | |
|---|---|---|---|---|---|---|---|---|
| 187558 | EDXe160/24.107 | 240W | SELV | 220mm | 63mm | 41mm | 950g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187558 | EDXe160/24.107 | 240W | 24V | 2% | < 0.4 | No | No | No | No | No | No | No | No |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187558 | EDXe160/24.106 | 240W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 1130mA | 0.98 | 0.93 | 9% | no standby operation possible | ≤ 0.4W | 66A | 430µs | 198ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187558 | EDXe160/24.107 | 240W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187558 | EDXe160/24.107 | 240W | No | No | No | No | No | No | No | No | No | 100% |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|
| 187558 | EDXe160/24.107 | 240W | SELV | 4kV | 6kv | 1.19mA |
ECXd 800.349
PrimeLine NFC L-R1 DALI2
For the installation in linear luminaires in indoor Office and/or Industry applications.
Linear LED drivers with DALI-2 dimming interface and integrated NFC interface for individual setting (contactless) of the output current, CLO function, DC levels and as well DALI parameters (DALI Configuration, Luminaire data, Control Gear Data and Lightsource Data).
KNOW MORE
For the installation in linear luminaires in indoor Office and/or Industry applications.
Linear LED drivers with DALI-2 dimming interface and integrated NFC interface for individual setting (contactless) of the output current, CLO function, DC levels and as well DALI parameters (DALI Configuration, Luminaire data, Control Gear Data and Lightsource Data).
Product benefits
- Adjustable output current, CLO, DC level via NFC
- Dimmable: DALI (Ed. 2) and PUSH key
- Full comatibility to DALI2 parts: -251, -252 and -253
- Product guarantee: 5 years
- Selectable output current via NFC
- Suitable for emergency escape lighting systems acc. to EN 50172
- Very low ripple: < 1%
- Long service life: up to 100.000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 186853 | ECXd 400.349 | 40 W | no Isolation | 280 mm | 30 mm | 21 mm | 200 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 186853 | ECXd 400.349 | 40 W | 30 V | 70 V | 1 % | < 0.4 |
| -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 186853 | ECXd 400.349 | 40 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 205 mA | 0.97 | 0.9 | 12 % | no standby operation possible | no load operation not intended | ≤ 0.45 W | 7 A | 990 µs | 660 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. input voltage DC | Max. input voltage DC | Input current at max. V DC with max. load | Switching time AC – DC | Switching time DC – AC | Time to light on in DC operation |
|---|---|---|---|---|---|---|---|---|
| 186853 | ECXd 400.349 | 40 W | 198 V | 276 V | 165 mA | 385 µs | 115 µs | 500 ms |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | Min. dimming level | Max. dimming level | PWM dimming frequency |
|---|---|---|---|---|---|---|---|---|
| 186853 | ECXd 400.349 | 40 W | Yes |
| No | 1 % | 100 % | 0 Hz |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Max. working voltage (Uout) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 186853 | ECXd 400.349 | 40 W | no Isolation | 250 V | 1 kV | 2 kV | 0.5 mA |
ECXe 700.666 220-240V
EasyLine DIP switch C Gen.2
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
KNOW MORE
For installation in compact luminaires
Compact casing design with optional strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- Selectable output current via DIP switch
- Very low ripple: < 5%
- Long service life: up to 100000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187419 | ECXe 700.666 220-240V | 14 W | SELV | 97 mm | 43 mm | 23 mm | 57 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | SVM value | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|---|
| 187419 | ECXe 700.666 220-240V | 14 W | 6 V | 20 V | 5 % | < 0.4 | DIP switch | -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187419 | ECXe 700.666 220-240V | 14 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 75 mA | 0.96 | 0.84 | 7 % | no standby operation possible | ≤ 0.3 W | 15 A | 244 µs | 20 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187419 | ECXe 700.666 220-240V | 14 W |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | Min. dimming level |
|---|---|---|---|---|---|
| 187419 | ECXe 700.666 220-240V | 14 W | No | No | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187419 | ECXe 700.666 220-240V | 14 W | SELV | 60 V | 1 kV | 2 kV | 0.6 mA |
WU-M-703-TC-865
LED Line SMD W2 EasyLine Gen.2 Long Boards, 1120mm
Build-in LED module for installation in linear luminaires
The product family is perfectly suitable for integration into linear luminaires or long serial lines of lighting fixuters. High LED density within the board brings very high light efficacy and perfect light homogenity. As well, different lumen packages and extended modularity deliver additional flexibility in reaching the target applications setups in terms of length (1120mm, 1400mm, 1680mm, 1960mm etc.) and desired light outputs. Pre-assembled push-in terminals with top side, back side and B2B (fast Board to Board) connection option.
KNOW MORE
Build-in LED module for installation in linear luminaires
The product family is perfectly suitable for integration into linear luminaires or long serial lines of lighting fixuters. High LED density within the board brings very high light efficacy and perfect light homogenity. As well, different lumen packages and extended modularity deliver additional flexibility in reaching the target applications setups in terms of length (1120mm, 1400mm, 1680mm, 1960mm etc.) and desired light outputs. Pre-assembled push-in terminals with top side, back side and B2B (fast Board to Board) connection option.
Product benefits
- Available in different colour temperatures
- Available in different lengths
- Available in different lumen packages
- ENEC approved
- Efficiency: up to 187 lm/W
- Long service life: up to 90.000 hrs.
GENERAL DATA
| Ref. No. | Type | LED quantity | Family data sheet | Length | Width | Height | LED technology | LED colour | Correlated colour temperature | Beam angle | Find system solution! |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 572683 | WU-M-703-TC-865 | 140 pcs. | 1119 mm | 20 mm | 5.5 mm | SMD | cool white | 6500 K | 120° |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | LED quantity | Operating current | Typ. voltage DC | Typ. power consumption |
|---|---|---|---|---|---|
| 572683 | WU-M-703-TC-865 | 140 pcs. |
|
|
|
OPTICAL OPERATING DATA
| ef. No. | Type | LED quantity | Current | Typ. luminous flux at If | Typ. efficiency at If | Typ. CRI (Ra) |
|---|---|---|---|---|---|---|
| 572683 | WU-M-703-TC-865 | 140 pcs. |
|
|
|
|
LIFETIME
| Ref. No. | Type | LED quantity | |||||
|---|---|---|---|---|---|---|---|
| 572683 | WU-M-703-TC-865 | 140 pcs. | |||||
EPREL DATA
| Ref. No. | Type | EPREL registration number | Energy efficiency class |
|---|---|---|---|
| 572683 | WU-M-703-TC-865 | 1608949 | C |
ECXd 1050.448
ComfortLine Prog S-1-10 V 100 V IP
For installation in street or industrial luminaires
Robust LED drivers with 1-10 V dimming interface and individual setting of the output current via iProgrammer Street 2.
KNOW MORE
LED driver for installation in luminaires for 48 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 50.000hrs.
- For conductor cross section: up to 2.5mm²
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187084 | ECXd 1050.448 | 150 W | double or reinforced Isolation | 173.6 mm | 68 mm | 37 mm | 800 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187084 | ECXd 1050.448 | 150 W | 100 V | 277 V | 90 V | 305 V | 47 Hz | 63 Hz | 230mA | 0.97 | 0.945 | 3 % | ≤ 2 W | no load operation not intended | 65 A | 308 µs | 500 ms |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187084 | ECXd 1050.448 | 150 W | 100 V | 277 V | 90 V | 305 V | 47 Hz | 63 Hz | 230 mA | 0.97 | 0.945 | 3 % | ≤ 2 W | no load operation not intended | 65A | 308 µs | 500 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187084 | ECXd 1050.448 | 150W |
DIMMING
| Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 186692 | EDXe 175/48.069 | 120W | No | No | No | No | No | No | No | No | No | No |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|
| 187084 | ECXd 1050.448 | 150 W | double or reinforced Isolation | 68 V | 6 kV | 10 kV | 0.7 mA |
ECXd 1050.560
PrimeLine DIP switch C-R3 loop DALI2
For recessed or independent operation of compact luminaires
Compact LED drivers with integrated DIP switch interface, DALI2 interface and through-wiring for individual setting of the output current.
KNOW MORE
For recessed or independent operation of compact luminaires
Compact LED drivers with integrated DIP switch interface, DALI2 interface and through-wiring for individual setting of the output current.
Product benefits
- Dimmable: DALI (Ed. 2)
- SELV
- Selectable output current via DIP switch
- Through-wiring
- Very low ripple: < 3%
- Long service life: up to 100.000 hrs.
GENERAL DATA
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary – secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187217 | ECXd 1050.560 | 40 W | SELV | 141.6 mm | 79 mm | 30 mm | 171 g |
ELECTRICAL OPERATING DATA
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | Current setting / Configuration | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|---|
| 187217 | ECXd 1050.560 | 40 W | 10 V | 54 V | 3 % |
| -5 % | 5 % |
AC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Networked standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187217 | ECXd 1050.560 | 40 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 196 mA | 0.95 | 0.87 | 10 % | no standby operation possible | no load operation not intended | ≤ 0.5 W | 5 A | 50 µs | 700 ms |
DC OPERATION
| Ref. No. | Type | Max. output power at AC operation | Min. input voltage DC | Max. input voltage DC | Input current at max. V DC with max. load | Time to light on in DC operation |
|---|---|---|---|---|---|---|
| 187217 | ECXd 1050.560 | 40 W | 176 V | 275 V | 170 mA | 700 ms |
DIMMING
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Light control / dimming | DALI power supply integrated | Min. dimming level | Max. dimming level |
|---|---|---|---|---|---|---|---|
| 187217 | ECXd 1050.560 | 40 W | Yes |
| No | 0 % | 100 % |
SAFETY FEATURES
| Ref. No. | Type | Max. output power at AC operation | Isolation primary – secondary | Max. working voltage (Uout) | Open circuit voltage (Umax.) | Protection against transient main peaks L–N | Protection against transient main peaks L/N–PE | Leakage current over PE |
|---|---|---|---|---|---|---|---|---|
| 187217 | ECXd 1050.560 | 40 W | SELV | 59 V | 59 V | 2 kV | 4 kV | 0.1 mA |
